Cubiko Dust Shoe Installation Guide

Introducing

This is a step-by-step guide for installing dust shoe on Cubiko CNC router.

Step 1:

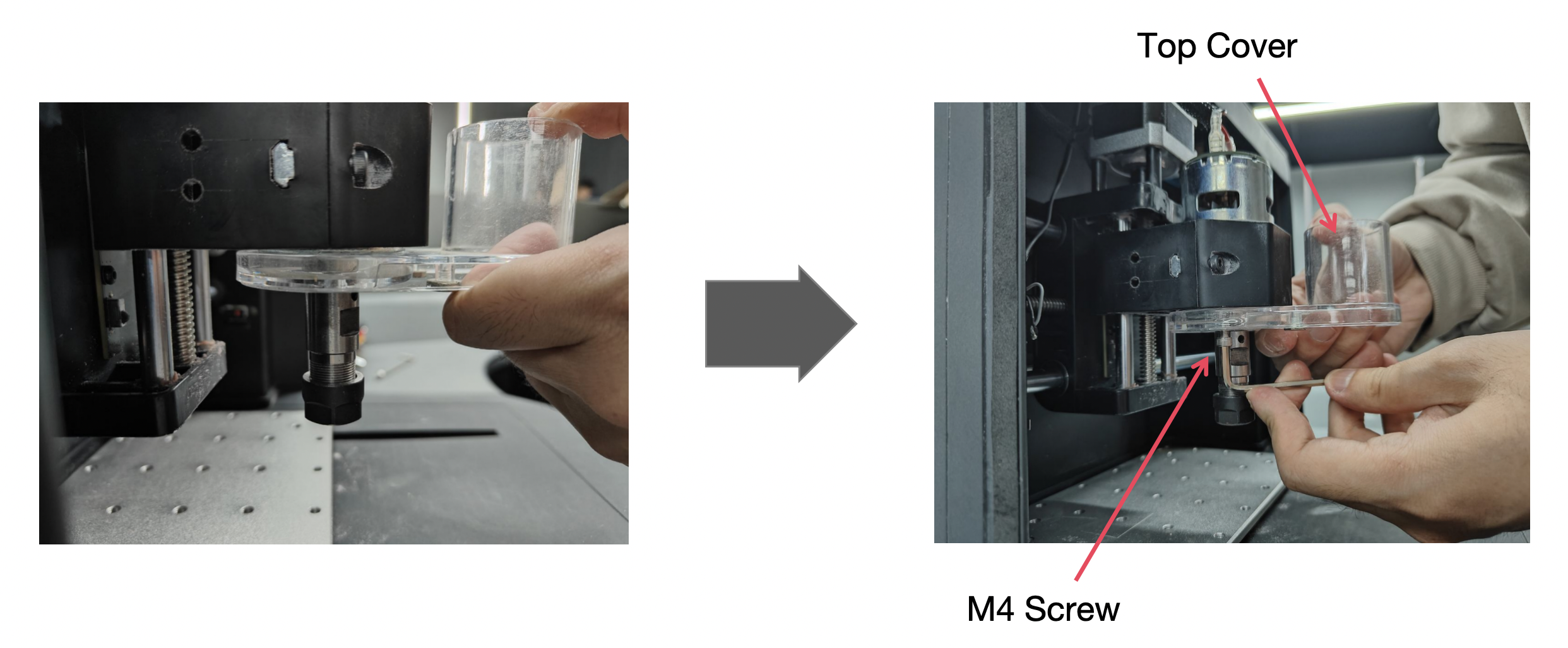

Install the Top Cover Install the Top Cover of the dust shoe on the spindle with 2 pieces of M4 x 8 screws.

Step 2:

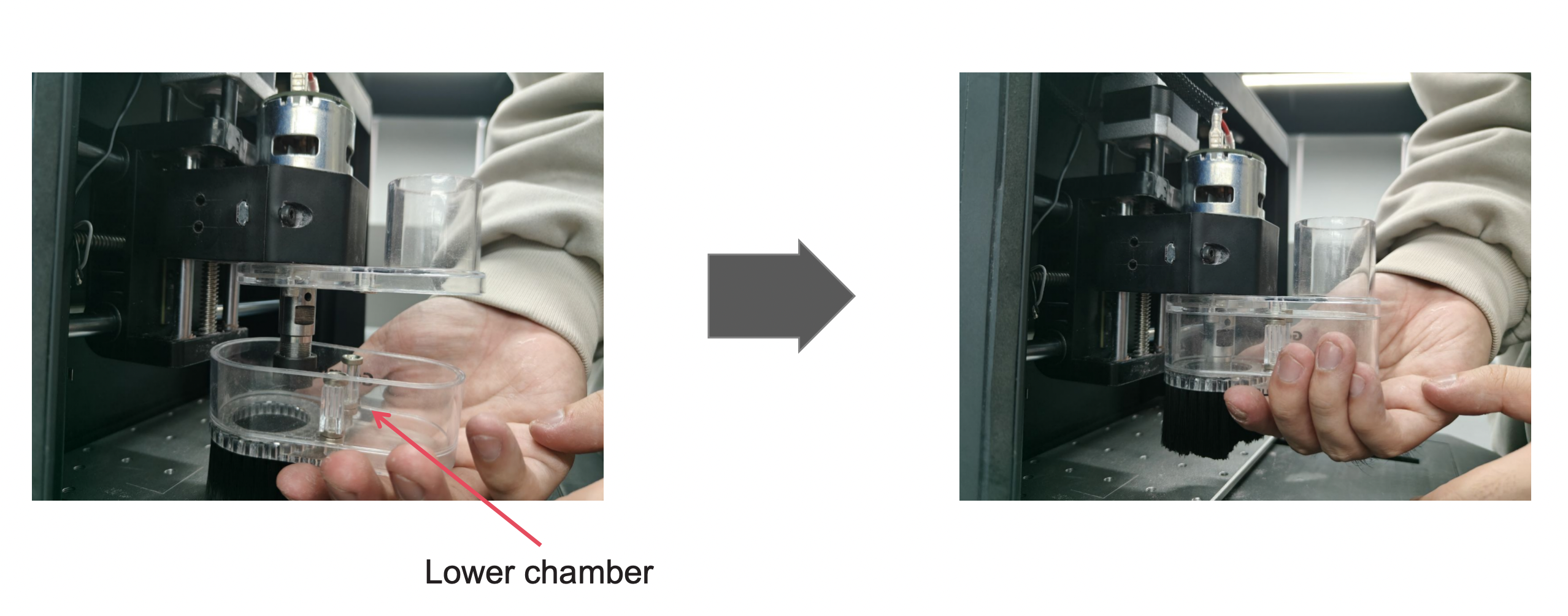

Install the lower Chamber Align the magnet at the top of the lower chamber with the magnet on the top cover. The lower chamber is then connected to the top cover of the dust shoe.

Step 3:

Installing the vacuum cleaner tube Insert the vacuum cleaner tube with 32mm outer diameter into the tube connection of the dust shoe Top Cover.
