SainSmart 15th Anniversary: Special G-Code Collection
To celebrate 15 years of making together, SainSmart is excited to share this curated G-code library with our community! Here, you’ll find ready-to-run G-code files along with full project parameters, material specifications, and dimensions—designed to help you jump right into creating.
Thank you for being part of our 15-year journey. Download a file, prep your machine, and let’s keep making! 🚀
📖 How to Use This Library
- Check Specifications: Each entry includes detailed G-code parameters (feed rates, speed, bit/tool specs) and material dimensions (Length × Width × Thickness).
- Safety First: While these G-codes are pre-tested, always preview the toolpath in your control software and verify your machine's zero points before running any project.
Project | Material | Setting | G-code |

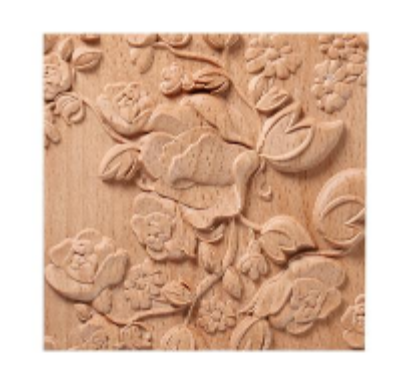

 | 100x100x30mm Beechwood | End Mills: V-bit Spindle Speed:12000RPM Feed Rate:200mm/min Depth of Cut: 0.5mm Time: 4h | |
 | 200x200x30mm Black Walnut | Rouging Spindle Speed: 12000RPM Feed Rate: 600mm/min Depth of Cut: 1mm End Mills: 3.175mm Single Flute Bit Finishing Spindle Speed:12000RPM Feed Rate:200mm/min Depth of Cut: 0.1mm End Mills: 30° V-Bit | |

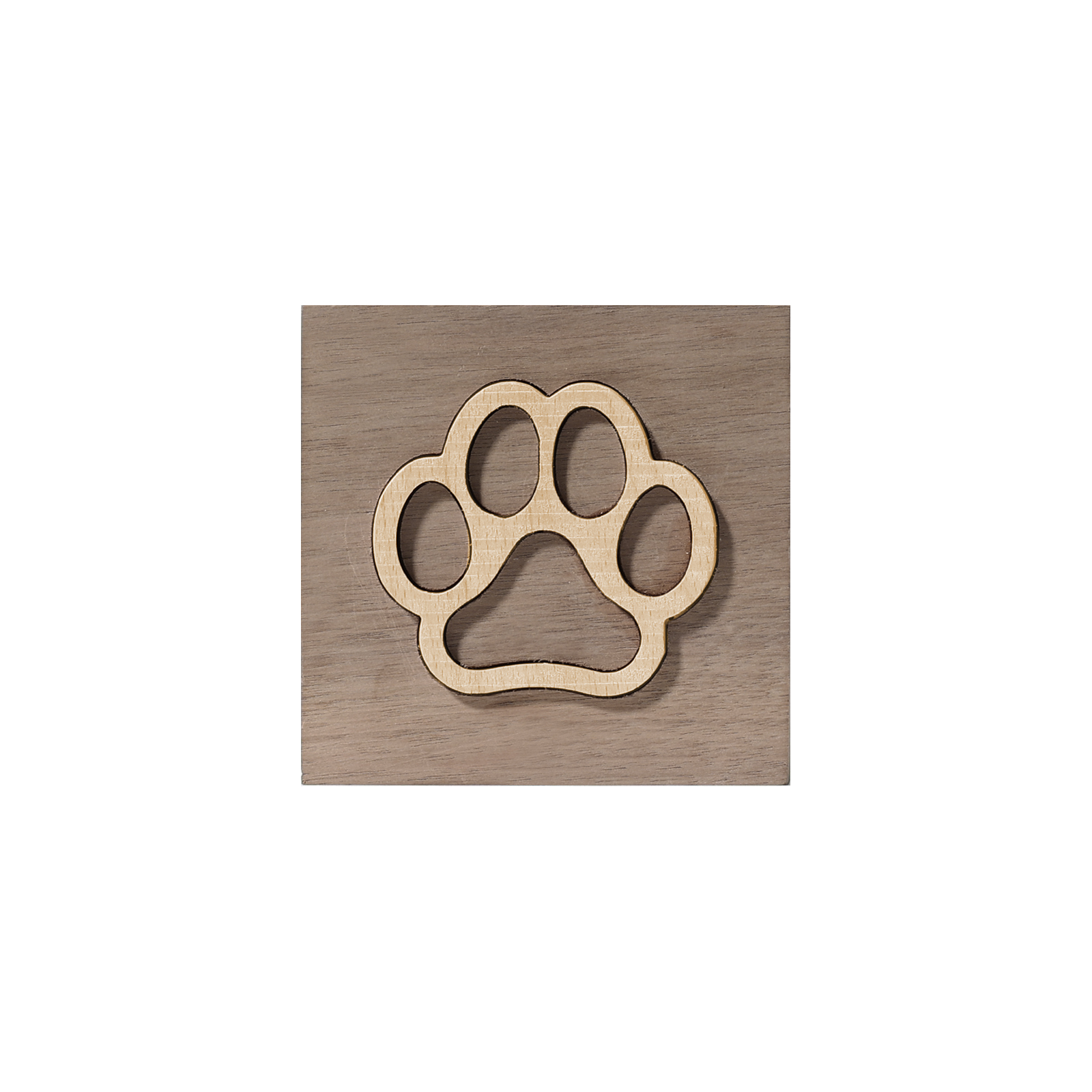

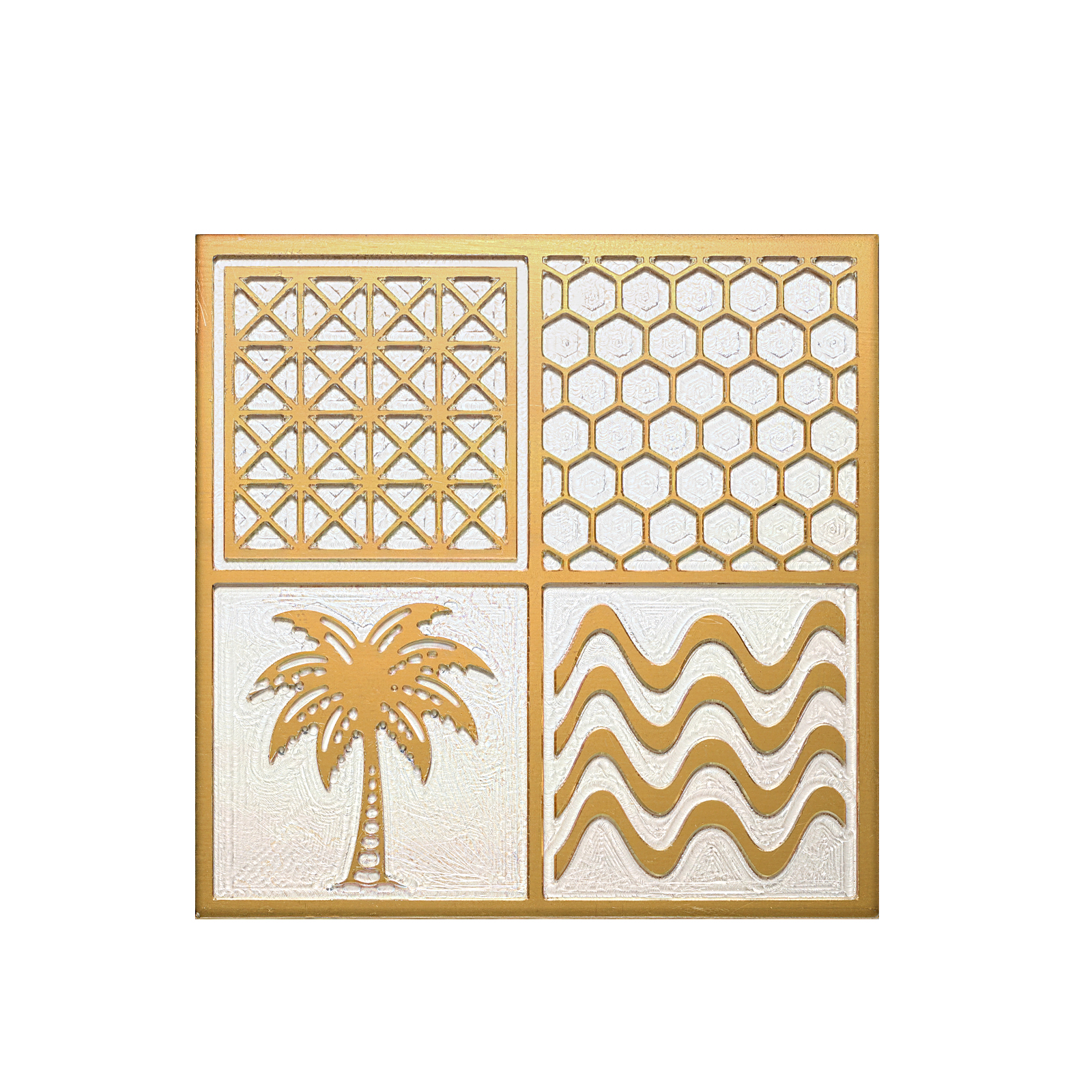

 | Openwork: 100x100x20mm Cherry Wood Inlay: 100x100x20mm Black Walnut | Spindle Speed: 15000RPM Feed Rate: 500mm/min Plunge Rate: 100mm/min Depth of Cut: 0.5mm End Mills: 2mm Single Flute Bit Origin Position: Left Front | |

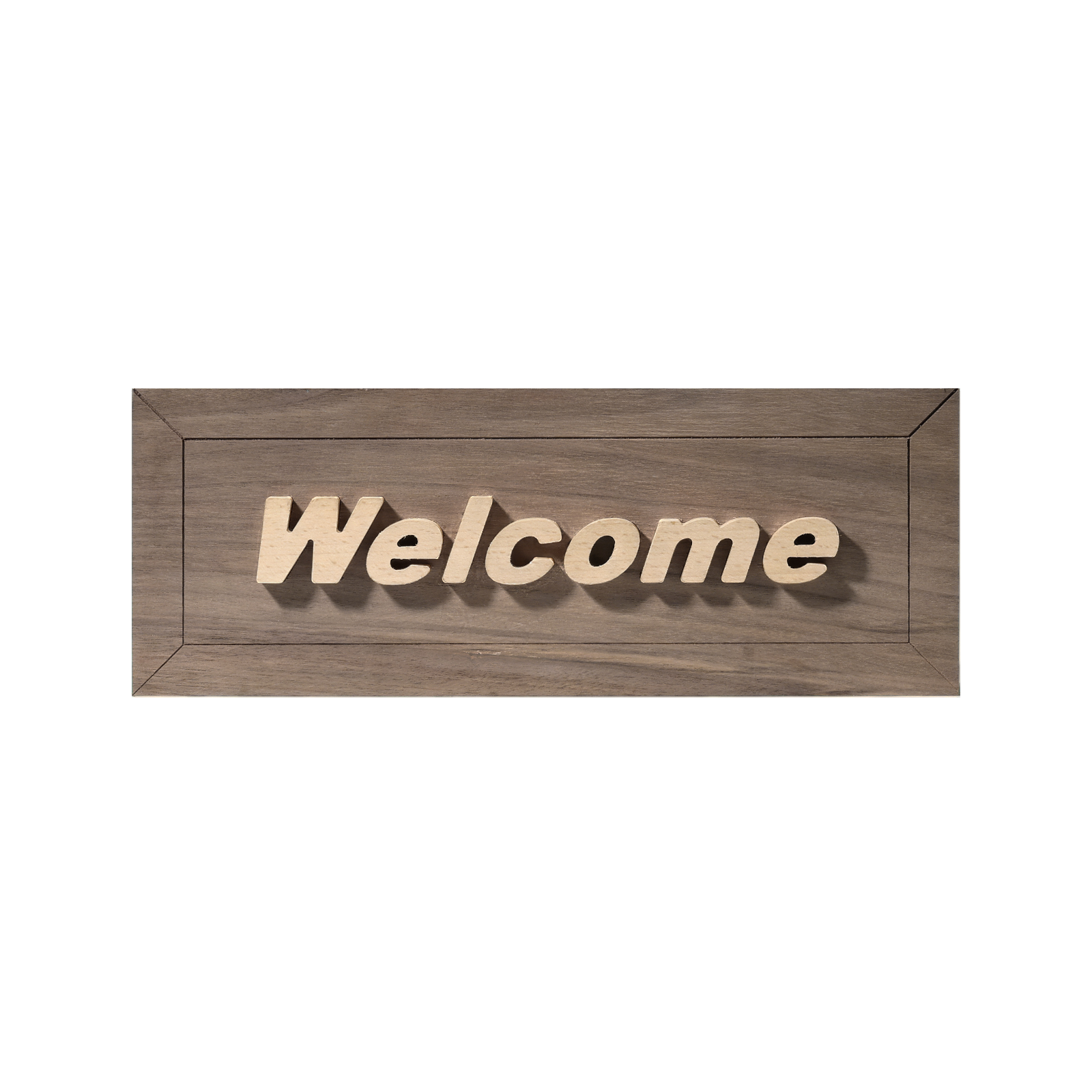

 | Openworkd: 400x150x20mm Cherry Wood Inlay: 400x150x20mm Black Walnut | Spindle Speed: 15000RPM Feed Rate: 800mm/min Plunge Rate: 200mm/min Depth of Cut: 0.5mm End Mills: 3.175mm Single Flute Bit Origin Position: Left Front | |

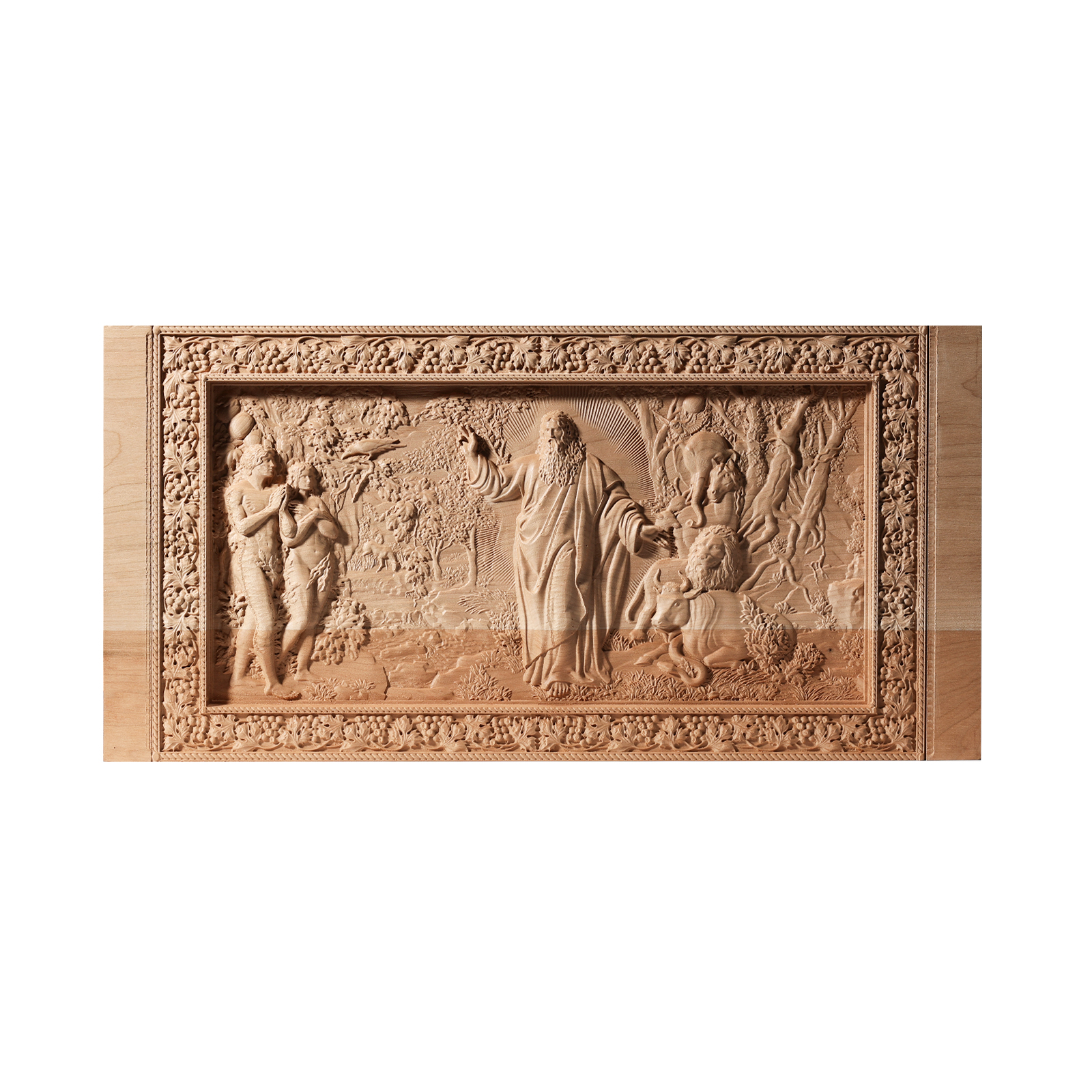

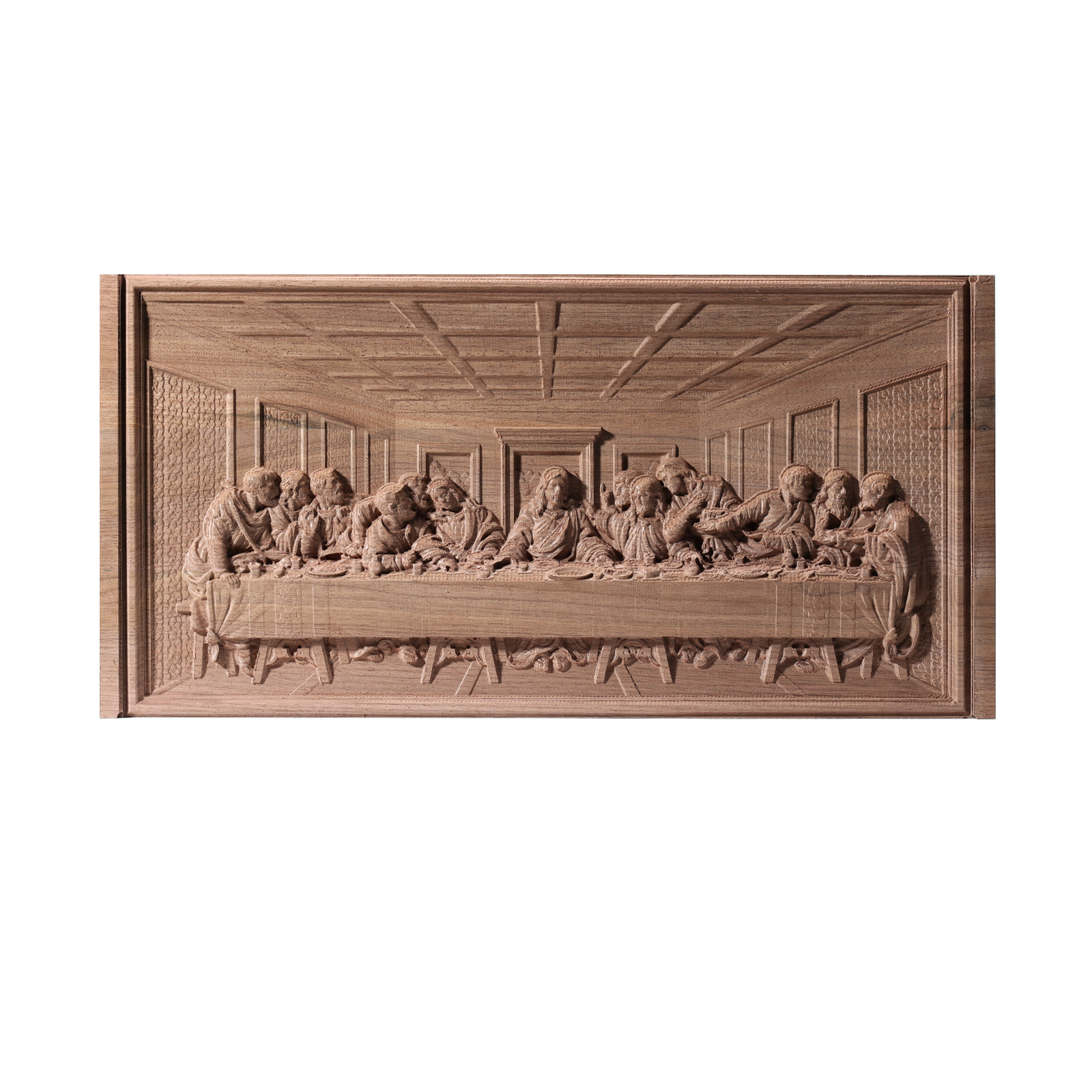

 | 600x300x40mm Black Walnut | Roughing Spindle Speed: 15000RPM Feed Rate: 800mm/min Plunge Rate: 200mm/min Depth of Cut: 0.5mm End Mills: 3.175mm Single Flute Bit Origin Position: Left Front Finishing Spindle Speed: 15000RPM Feed Rate: 800mm/min Plunge Rate: 200mm/min Depth of Cut: 0.5mm End Mills: 3.175mm Ball Nose Bit Origin Position: Left Front | |
 | 600x300x40mm Cherry Wood | Roughing Spindle Speed: 15000RPM Feed Rate: 1200mm/min Plunge Rate: 400mm/min Depth of Cut: 1mm End Mills: 3.175mm Single Flute Bit Origin Position: Left Front Finishing Spindle Speed: 15000RPM Feed Rate: 1200mm/min Plunge Rate: 400mm/min Depth of Cut: 0.1mm End Mills: 3.175mm Ball Nose Bit Origin Position: Left Front | |

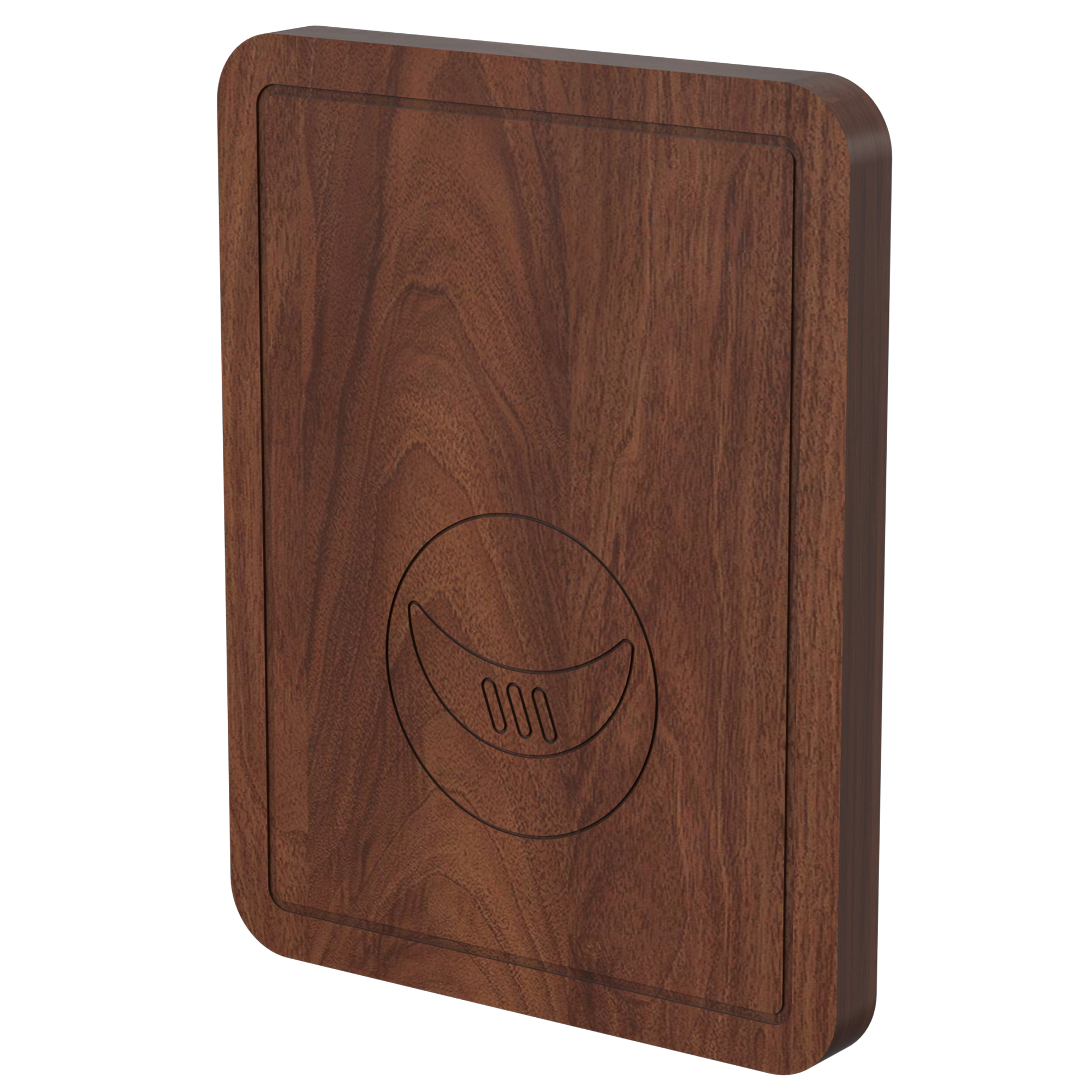

 | 200x200x30mm Wood | Logo Spindle Speed: 15000RPM Feed Rate: 400mm/min Plunge Rate: 200mm/min Depth of Cut: 0.1mm End Mills: 20° V-bit Origin Position: Left Front Roughing & Edges Spindle Speed: 15000RPM Feed Rate: 800mm/min Plunge Rate: 400mm/min Depth of Cut: 1mm End Mills: 3.175mm Single Flute Bit Origin Position: Left Front | |
 | 200x200x30mm Wood | Logo Spindle Speed: 15000RPM Feed Rate: 600mm/min Plunge Rate: 200mm/min Depth of Cut: 0.1mm End Mills: 20° V-Bit Origin Position: Left Front Roughing Spindle Speed: 15000RPM Feed Rate: 800mm/min Plunge Rate: 400mm/min Depth of Cut: 1mm End Mills: 3.175mm Single Flute Bit Origin Position: Left Front | |
 | 200x200x30mm Wood | Logo Spindle Speed: 15000RPM Feed Rate: 400mm/min Plunge Rate: 200mm/min Depth of Cut: 0.1mm End Mills: 20° V-Bit Origin Position: Left Front Edge Spindle Speed: 15000RPM Feed Rate: 800mm/min Plunge Rate: 400mm/min Depth of Cut: 1mm End Mills: 3.175mm Single Flute Bit Origin Position: Left Front | |
 | Front: 200x50x5mm Wood Back: 200x50x20mm Wood | Spindle Speed: 15000RPM Feed Rate: 800mm/min Plunge Rate: 60mm/min Depth of Cut: 1mm End Mills: 3.175mm Single Flute Bit Origin Position: Left Front | |

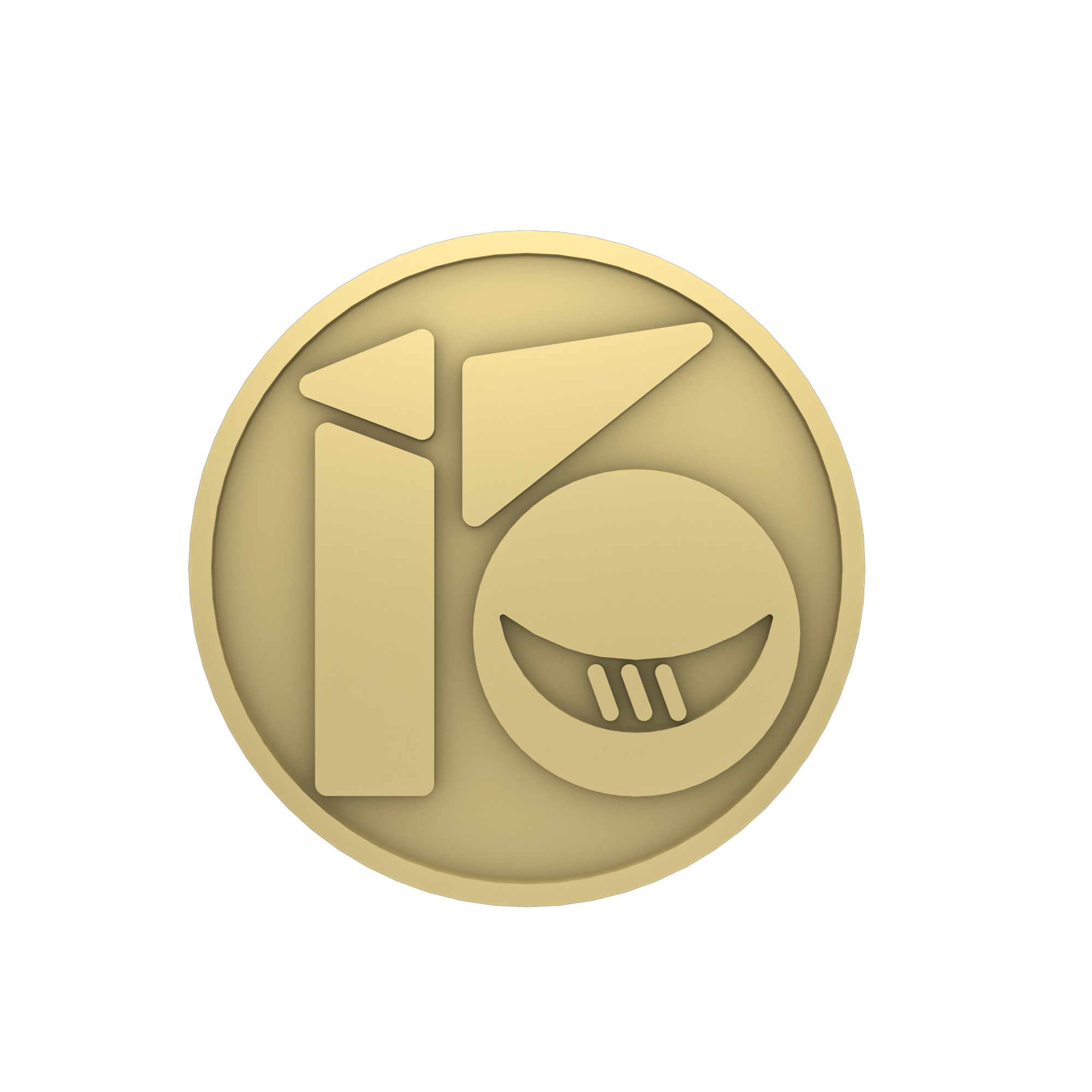

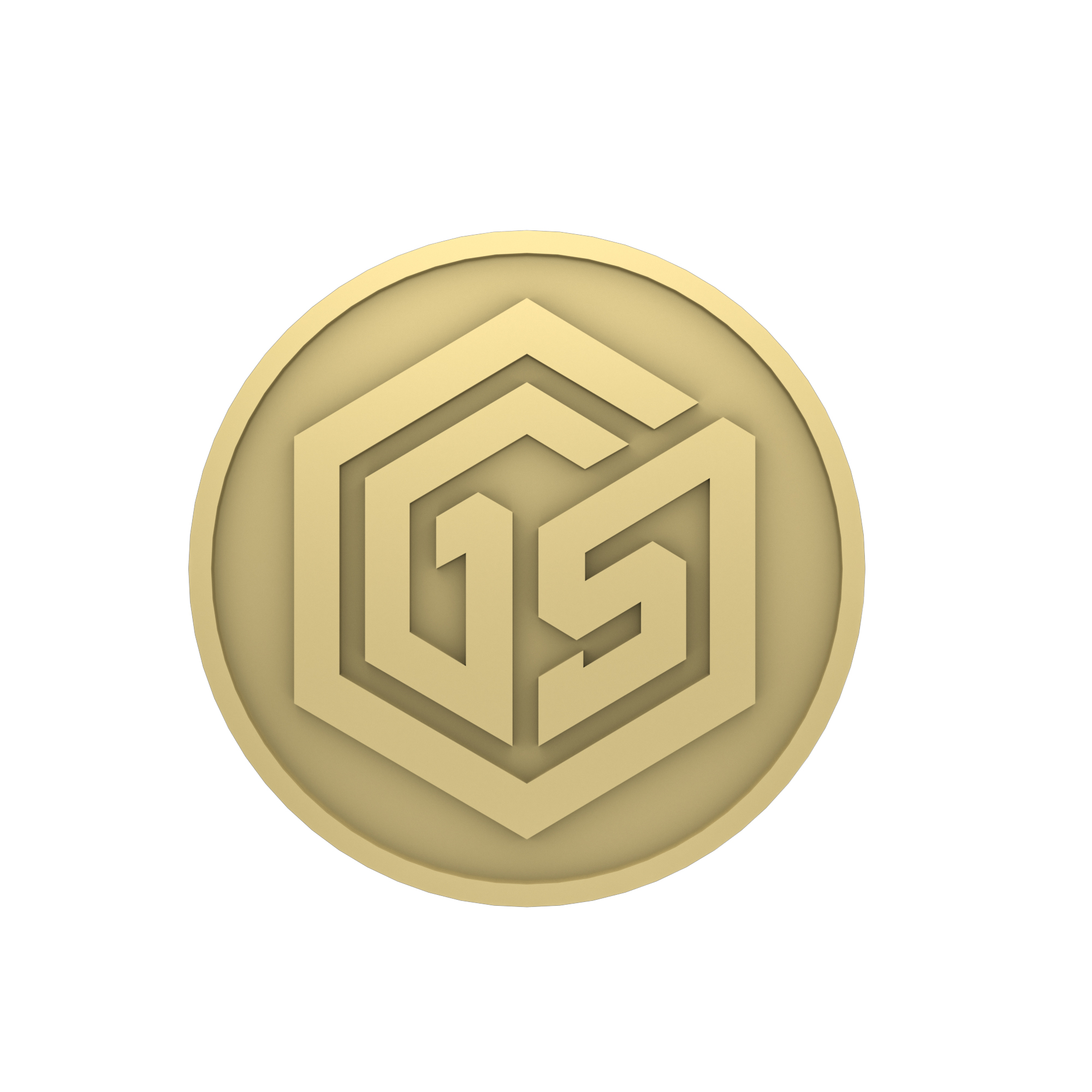

 | 50x50x5mm Copper | Spindle Speed: 15000RPM Feed Rate: 50mm/min Plunge Rate: 50mm/min Depth of Cut: 0.05mm End Mills: 1mm Single Flute Bit Origin Position: Center | |
 | 50x50x5mm Copper | Roughing Spindle Speed: 15000RPM Feed Rate: 50mm/min Plunge Rate: 50mm/min Depth of Cut: 0.05mm End Mills: 1mm Single Flute Bit Origin Position: Center Finishing Spindle Speed: 15000RPM Feed Rate: 50mm/min Plunge Rate: 50mm/min Depth of Cut: 0.05mm End Mills: 0.5mm ball nose Bit Origin Position: Center | |

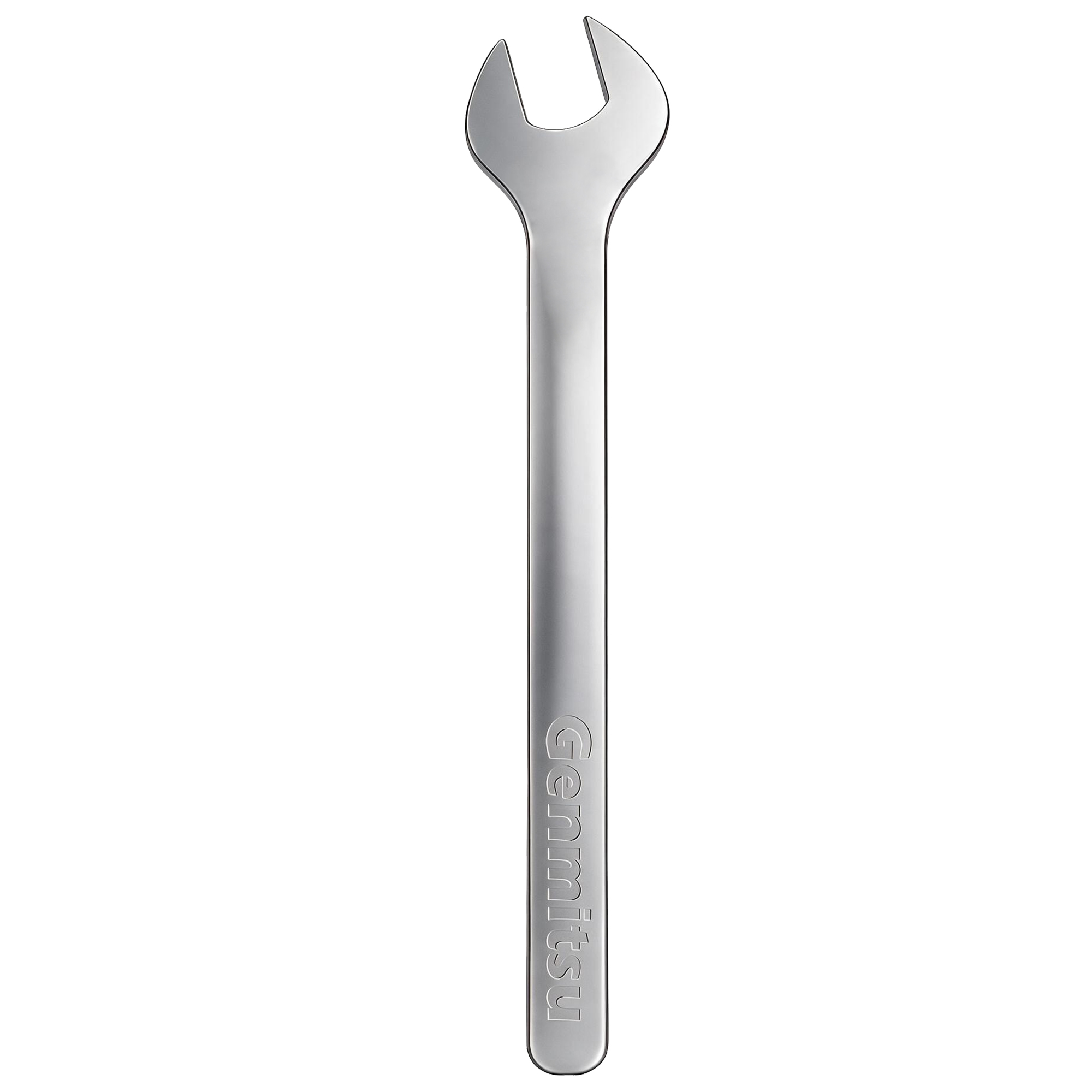

 | 150x50x5mm Aluminum | Logo Spindle Speed: 15000RPM Feed Rate: 50mm/min Plunge Rate: 50mm/min Depth of Cut: 0.1mm End Mills: 1mm Single Flute Bit Origin Position: Left Front Wrench Edges Spindle Speed: 15000RPM Feed Rate: 100mm/min Plunge Rate: 100mm/min Depth of Cut: 0.1mm End Mills: 3.175mm Single Flute Bit Origin Position: Left Front | |

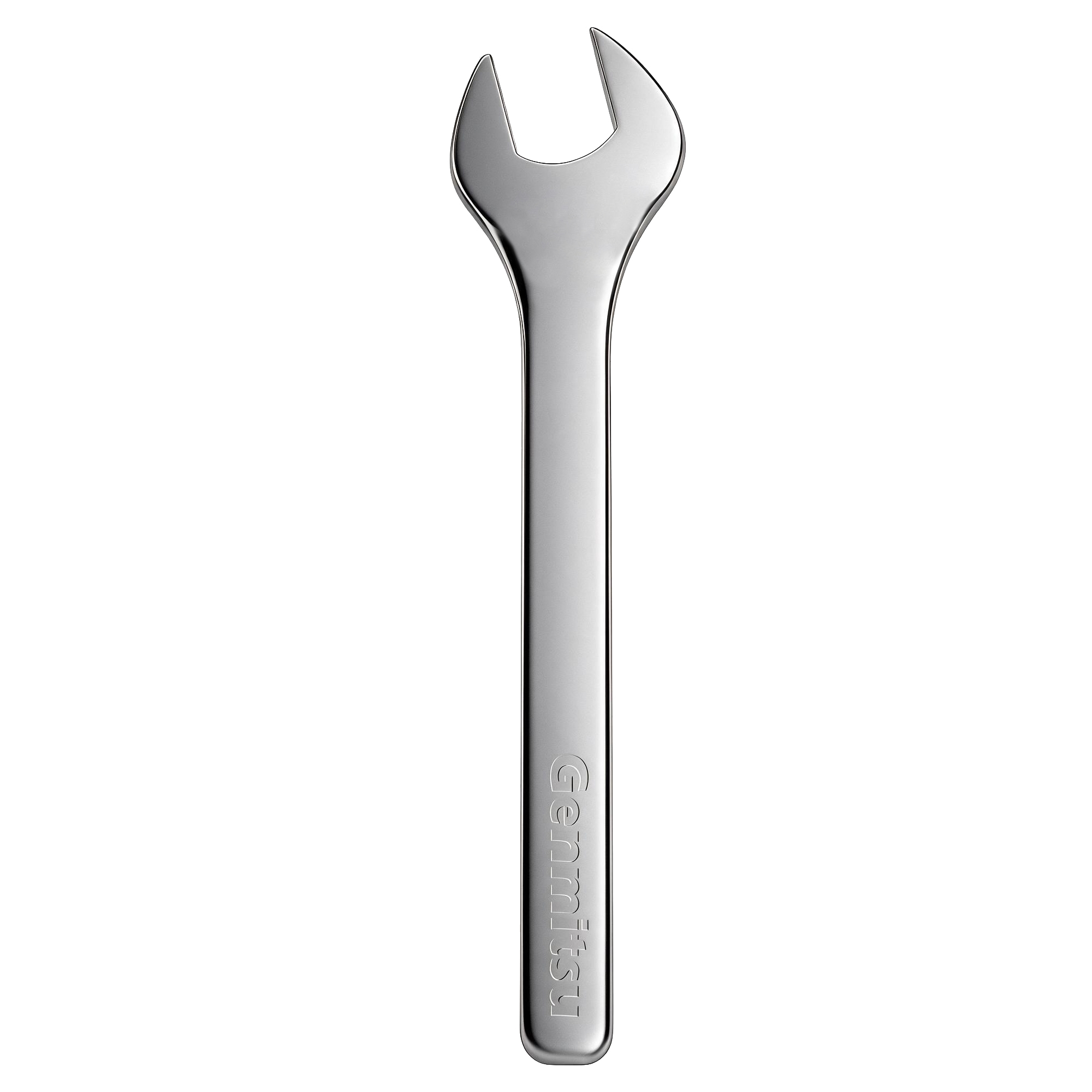

 | 200x50x5mm Aluminum | Logo Spindle Speed: 15000RPM Feed Rate: 50mm/min Plunge Rate: 50mm/min Depth of Cut: 0.1mm End Mills: 1mm Single Flute Bit Origin Position: Left Front Wrench Edges Spindle Speed: 15000RPM Feed Rate: 100mm/min Plunge Rate: 100mm/min Depth of Cut: 0.1mm End Mills: 3.175mm Single Flute Bit Origin Position: Left Front | |
 | 200x200x5mm Copper | Roughing Spindle Speed: 15000RPM Feed Rate: 300mm/min Plunge Rate: 100mm/min Depth of Cut: 0.1mm End Mills: 3.175mm Single Flute Bit Origin Position: Left Front Finishing Spindle Speed: 15000RPM Feed Rate: 100mm/min Plunge Rate: 100mm/min Depth of Cut: 0.1mm End Mills: 2mm Single Flute Bit Origin Position: Left Front | |

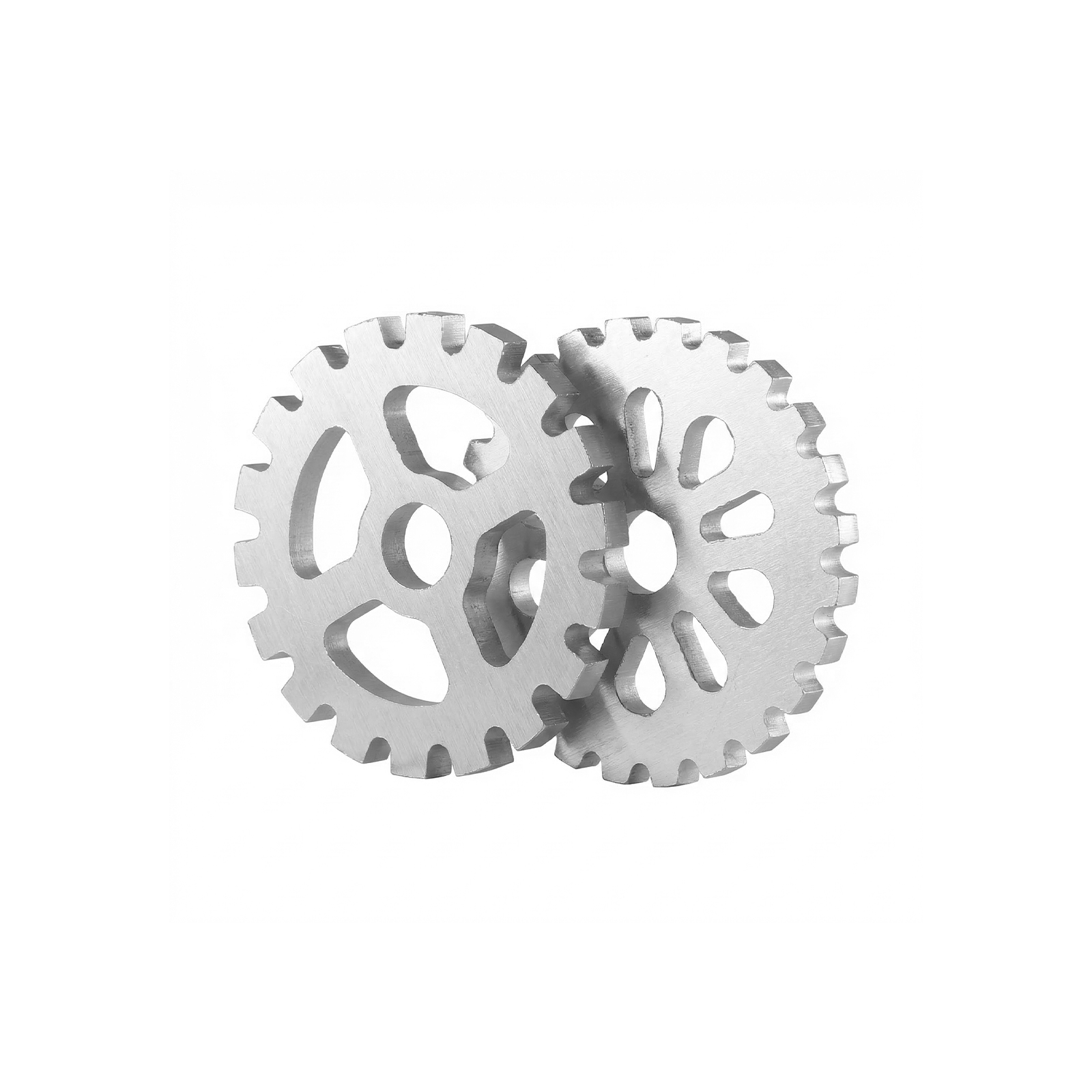

 | 100x100x20mm Aluminum | Spindle Speed: 15000RPM Feed Rate: 500mm/min Plunge Rate: 100mm/min Depth of Cut: 0.5mm End Mills: 2mm Single Flute Bit Origin Position: Left Front | |

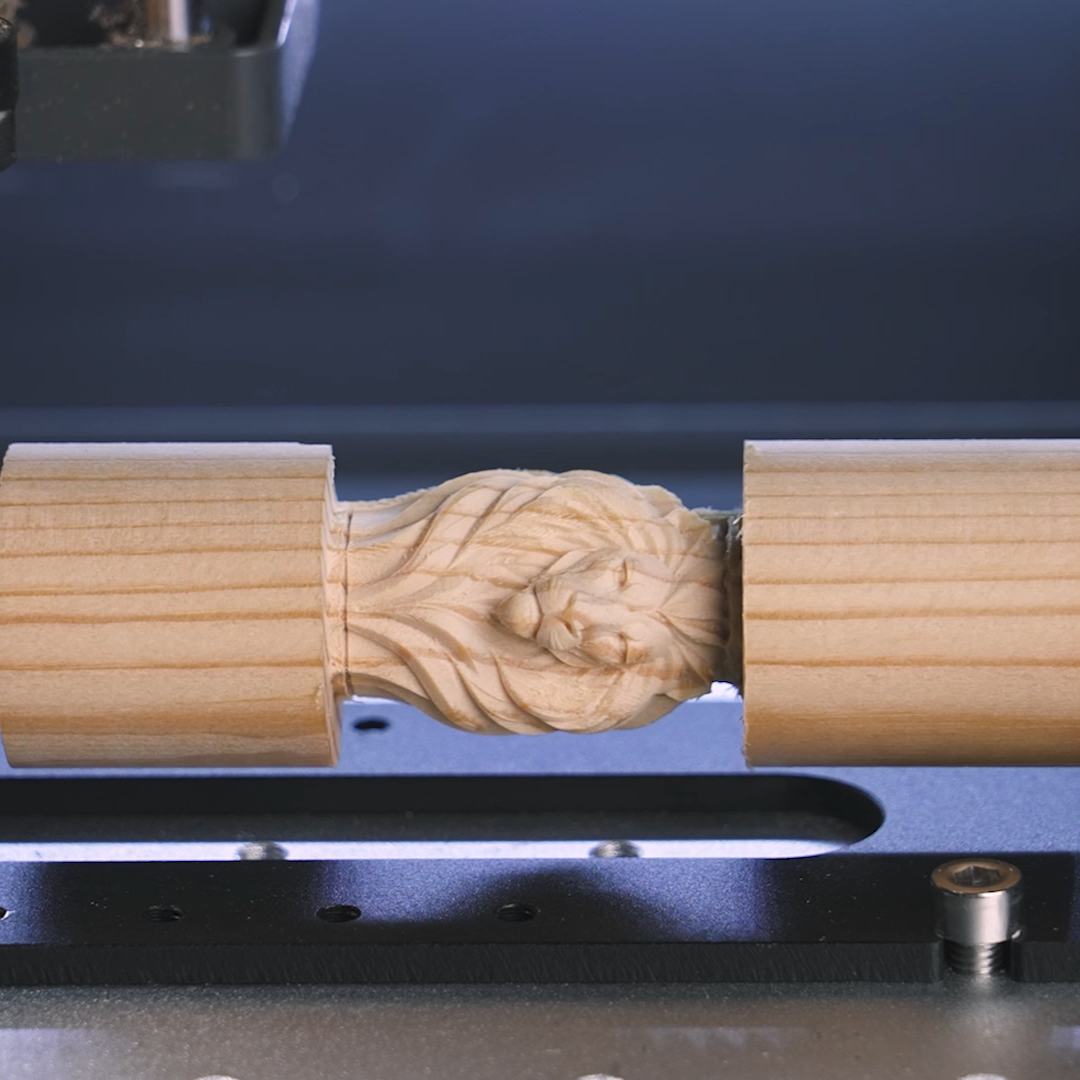

 | 30x30x100mm Cherry Wood | Feed Rate: 300mm/min Spindle Speed: 12000mm/min End Mills: V-bit Time: 8h |
